AVS Hydraulic Rotators
DATA SHEETS / technical data
LEGEND: ¹ Operating fields Fix connection | ² Operating fields Cardanic suspension|
Rotator Operating Instructions | Bending Moments
EXCAVATOR
ARG 30 - 22.500 kg ¹ | 6.000 kg ²
NOT suitable for log grapples
ARG 50 - 2.33.500 kg ¹ | 10.000 kg ²
ARH 70 - 2.16.000 kg ¹ | 14.000 kg ²
ARB 60 - 5 / 66.500 kg ¹ | 16.000 kg ²
ARB 80 - 1 / 2 / 169.000 kg ¹ | 18.000 kg ²
ARB 120 - 2 / 3 / 4 / 613.000 kg ¹ | 25.000 kg ²
ARB 150 - 2 / 3 / 3.1 / 420.000 kg ¹ | 35.000 kg ²
ARB 200 - 1 / 226.000 kg ¹ | 40.000 kg ²
ARB 300 - 1 / 230.000 kg ¹ | 50.000 kg ²
SPECIAL

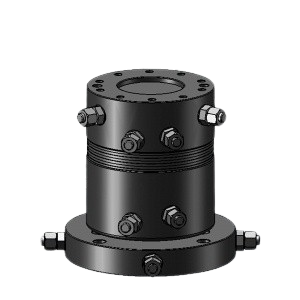

ARG 50 - 2DD8.000 kg ²
4 – fold lead-through
ARG 50 - 2.1DD3.000 kg ¹ | 8.000 kg ²
4 – fold lead-through
ARB 60 - 5.24.000 – 10.000 kg ¹ | 16.000 kg ²
with leakage line for add-on compressors etc.- ARB 60 - 5.34.000 – 10.000 kg ¹ | 16.000 kg ²
with leakage line for add-on compressors etc.
NEW: ARB 65 - 4DD4.000 – 6.000 kg ¹ | 16.000 kg ²
4 – fold lead-through + leakage line
ARB 120 - 1DD11.000 kg ¹ | 18.000 kg ²
4 – fold lead-through + leakage line
ARB 150 - 7DD14.000 kg ¹ | 25.000 kg ²
4 – fold lead-through
ARB 150 - 810.000 – 40.000 kg ¹ | 45.000 kg ²
with leakage line for add-on compressors etc.
